How to Choose Wire Rope Mesh for Bridge Safety Barrier Mesh: A Technical Guide

‌Introduction ‌

Wire rope mesh systems are critical for creating durable, flexible safety barriers in bridge protection, industrial environments such as factories, warehouses, and construction sites. As a specialized manufacturer of wire rope mesh systems, we provide professional and detailed wire rope system solutions, including installation instructions and some related accessories.

This guide explains key technical factors to consider when selecting wire rope mesh and compatible accessories.

1. Material Selection: Corrosion Resistance & Strength ‌‌

• ‌Type 316 Stainless Steel‌: Ideal for harsh environments (e.g., chemical plants, coastal areas). Contains molybdenum for enhanced corrosion resistance.

• ‌Type 304 Stainless Steel‌: Cost-effective for general industrial use. Resists oxidation in moderate conditions.

2. Mesh Design: Safety & Visibility‌

	Rope Diameter:	Common ones are 1.2mm, 1.5mm, 2.0mm, 3.0mm, etc
	Aperture Size:	50*87mm, 60*104mm, 80*139mm, 100*173mm, etc.
	E.g.‌	50mm x 50mm‌: Prevents small tools/parts from falling while maintaining visibility.
		100mm x 100mm‌: Reduces wind load for outdoor barriers (e.g., rooftop guardrails).

• ‌Edge Reinforcement

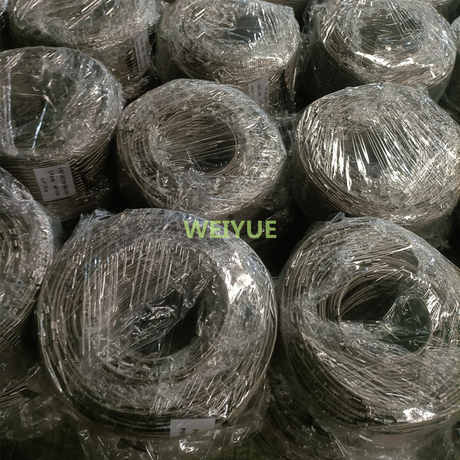

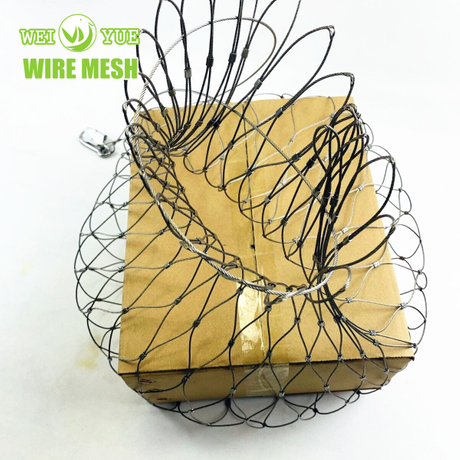

  * Rope mesh, in pieces and roll: We have 2 orientations of the mesh, with different Perimeter Designs, such as below pictures:



  * Frame-integrated Mesh‌: Our pre-assembled panels with steel borders (e.g., 20mm round tube, 30mm x 30mm square tubes) ensure rigidity and easy bolt-on installation.

‌‌3. Compatibility with Accessories

• Tensioners (Turnbuckles)

• Ferrules & Thimbles

  · Ferrules‌: Required for mesh connections

  · ‌Thimbles with Welded Eyes‌: Prevent rope fraying at anchor points.

• ‌DIY Tools: Hydraulic Pressing/Cutting Tools‌: Ensure clean cuts and uniform crimping for onsite modifications.

‌Conclusion‌

Choosing the right wire rope mesh system requires balancing material properties, load requirements, and compatibility with tensioning accessories.

As a modular solution provider, we, Hebei Weiyue Wire Mesh Products company focus on delivering high-quality mesh panels and tools to simplify integration with your structural designs.
